5t/H Soya Bean, Ground Nut Seed Air Screen Cleaner Machine

  • Video Technical Support,Online Support

  • 2years

  • Grain Seed Cleaning and Grading Machine

  • 380V

  • Horizontal

  • Fourth

Availability:
Quantity:
Inquire


Product Description

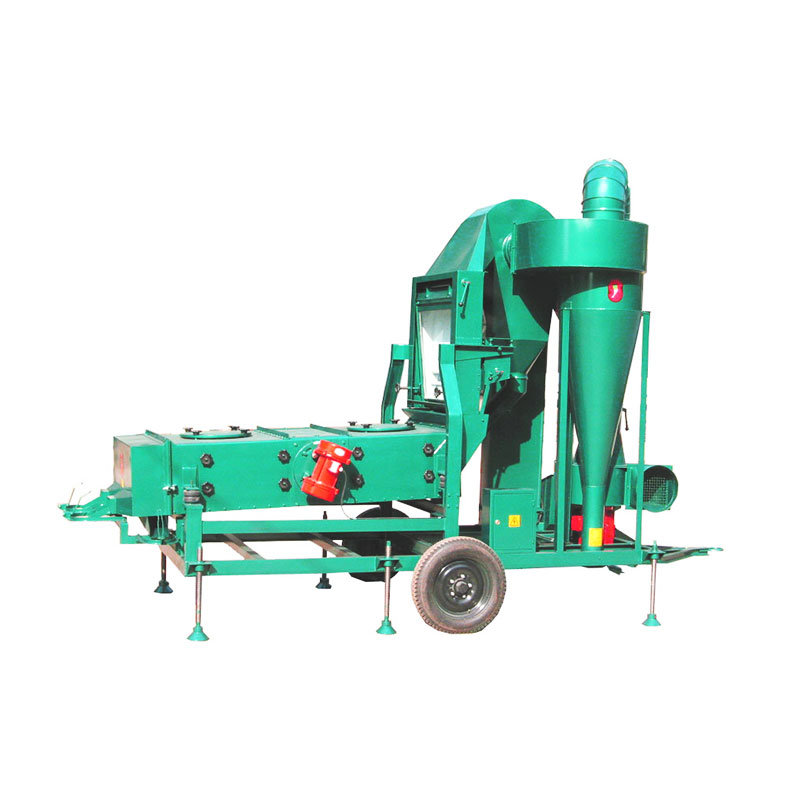

5t/H Soya Bean, Ground Nut Seed Air Screen Cleaner Machine
Introduction of air screen cleaner:


5XHC series air screen cleaning machine is for primary cleaning of all kinds of grain seeds an cops seed. it have the elevating systemm air dust cleaning system and screen cleaning system.

The elevator Adopt double cylinder ultra-low speed elevator, makes the crushing rate is less than 0.1%. vibration motor not only makes the machine compact structure, reduces the failure rate no special requirements for the use of the origin, can mobile operation.

in the air dust cleaning system, it makes full use of the principle of wind sorting and screen sifting, can effectively separate straws awns, dust and other kinds of light impurities, with two times air dust cleaning and cyclone dust colloction system, sanitation with more environmental protection.

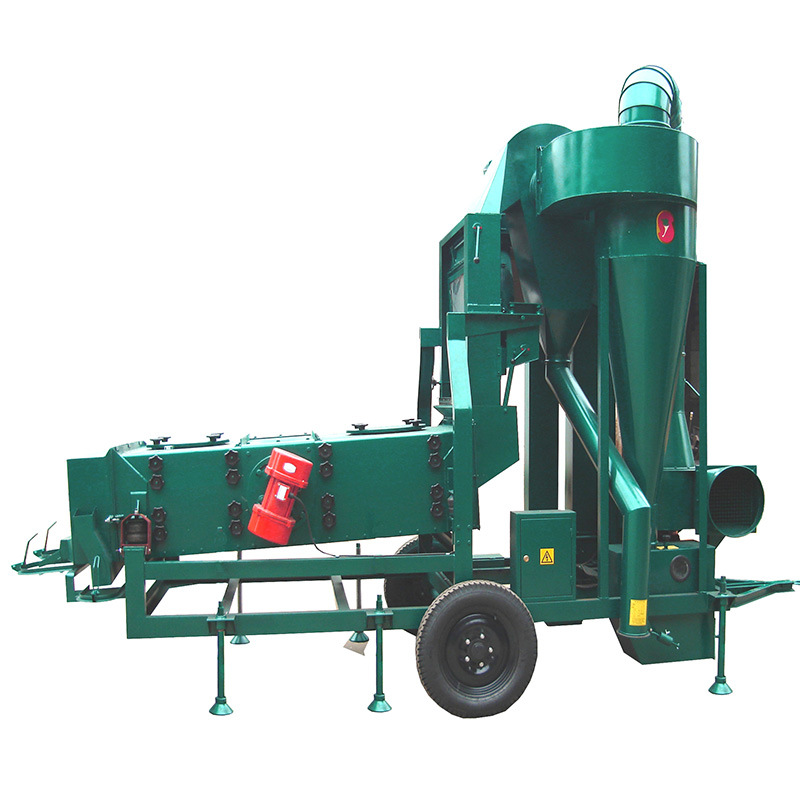

5t/H Soya Bean, Ground Nut Seed Air Screen Cleaner Machine
In the screen cleaning system, it will sift our the big size and small size impurities according to the seed geometry size (length, width, thickness).

Specifications and Advantages

Specifications of 5XHC serise air screen cleaning machine :

Item 5XHC3.0 5XHC-5.0 5XHC-7.0 5XHC-10
Capacity 3000KG/H 5000KG/H 7000KG/H 10000KG/H
Powder 6.0KW 6.24KW 8.6KW 9.75
Cleanness improve 2%-5% 2%-5% 2%-5% 2%-5%
Selected rate ≥98% ≥98% ≥98% ≥98%
Size 3400*1900*3220(mm) 5073*2008*3349(mm) 4473*2208*3349(mm) 4930*2450*3192(mm)
weight 1300 1500 1750 2100

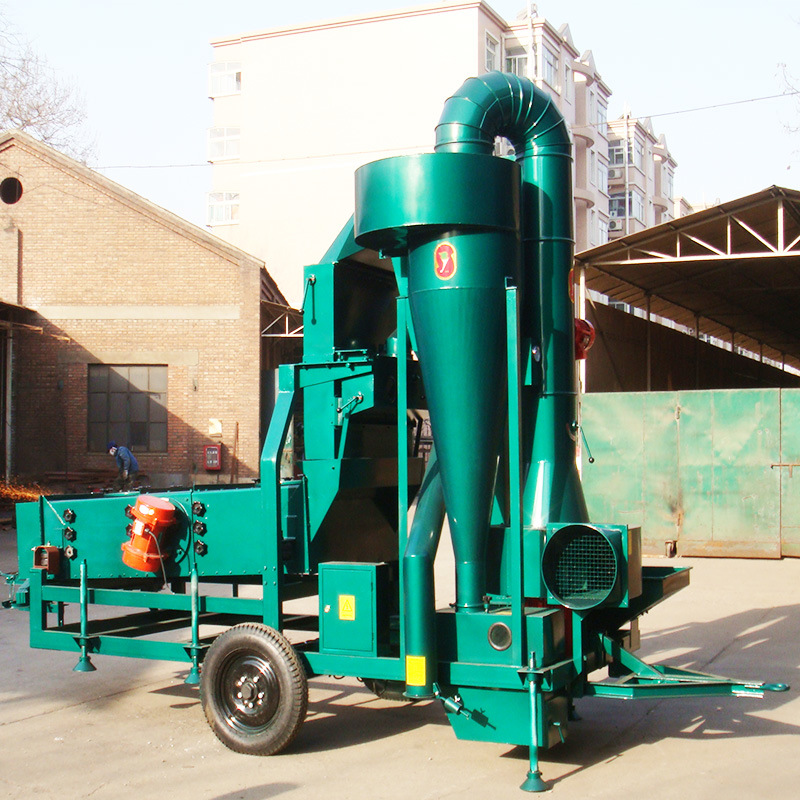

5t/H Soya Bean, Ground Nut Seed Air Screen Cleaner Machine

Asamble Drawing for air screen cleaning machine
Advantage of air screen cleaning machine:
  1. Widely use, suitable almost all kinds seed, grain and granular material processing industrial.
  2. Closed two times air dust cleaning system, reduce air dust pollution
  3. Though changing screens to process different grains seed
  4. double cylinder ultra-low speed elevator, makes the crushing rate is less than 0.1%
  5. Easy to operate, easy to replace screen, flexible to move, easy to transport, high reliability.
  6. It can combine with gravity cleaner, destoner, seeds grading coating machines to a complete production line.

Product application type

this series screen cleaning machine is suitable for all kinds grain seeds and crop seeds cleaning processing.

depend on the geometry size of different kinds of grains, we can equip different mesh size screens, thogh changing the screens, it can suitable for different grains, like maize, wheat, sesame, paddy, millet, cotton seeds, soya bean, sorghum, oat, ground nut, pumpkin seed, melon seed, sunflower seed, buckwheat, green bean, red bean, black bean, pea, chickpea, Alfalfa seeds, cassia seed, grass seeds and so on.

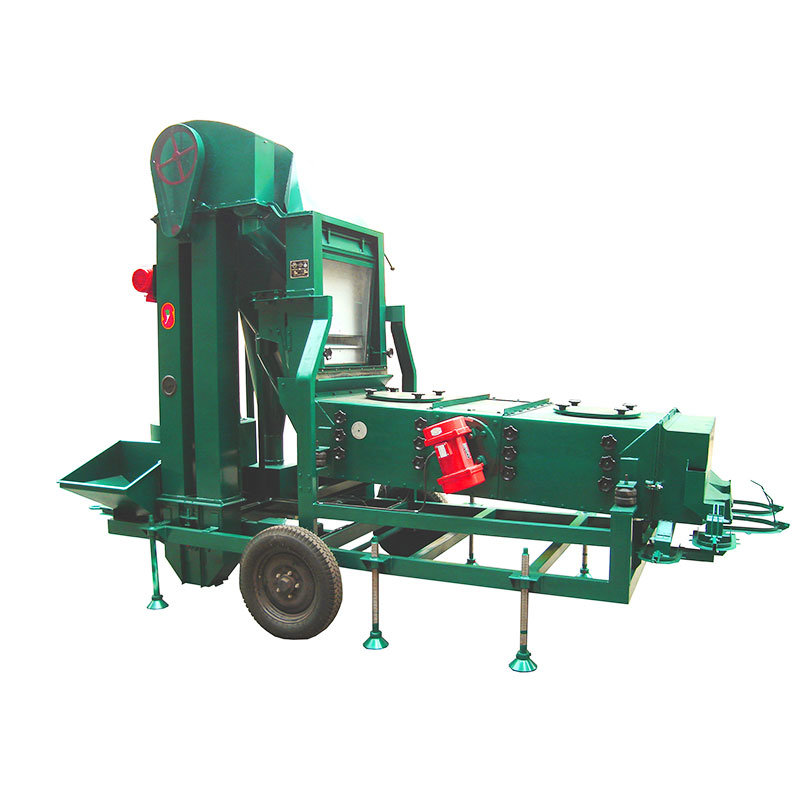

5t/H Soya Bean, Ground Nut Seed Air Screen Cleaner Machine

Supplier qualification

Why choose Green Torch as your partner?

1. Since 1980, 40 years experience
Shijiazhuang Green Torch Seed Machinery Co., is one of the earliest professional enterprise engaged in the research, development and production operation of grain seeds cleaning and processing machinery.

2. China state-owned Enterprises
Invested and established by Ministry of Agriculture, perfect reputation in all clients , your trustable supplier in China.
5t/H Soya Bean, Ground Nut Seed Air Screen Cleaner Machine3. Customized Service
Qualified technicians team and workers, supply special design and perfect work depend on client needing

4. Life time after service
Professional quality control team, 2 years guarantee time, life time service for all our machines


Packaging and transportation

6. About loading:

For LCL, we will pack in durable wooden box package. Fix insed well to make sure the goods can arrive to your factory well.
For FCL, we will make the3D drawing for loading the goods in the container to make sure every part can be packed and loaded well.

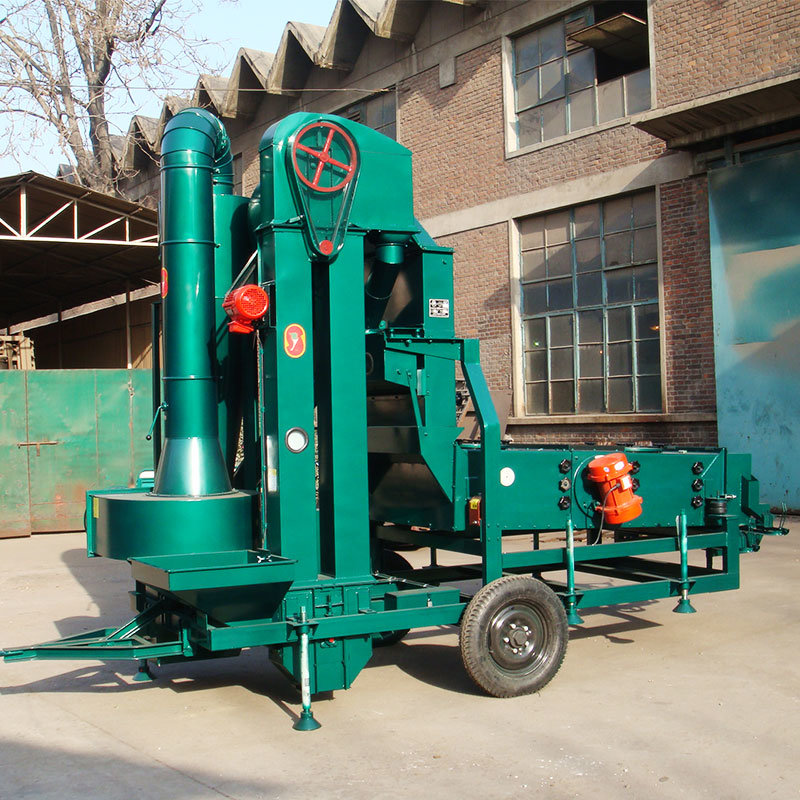

5t/H Soya Bean, Ground Nut Seed Air Screen Cleaner Machine

contact information

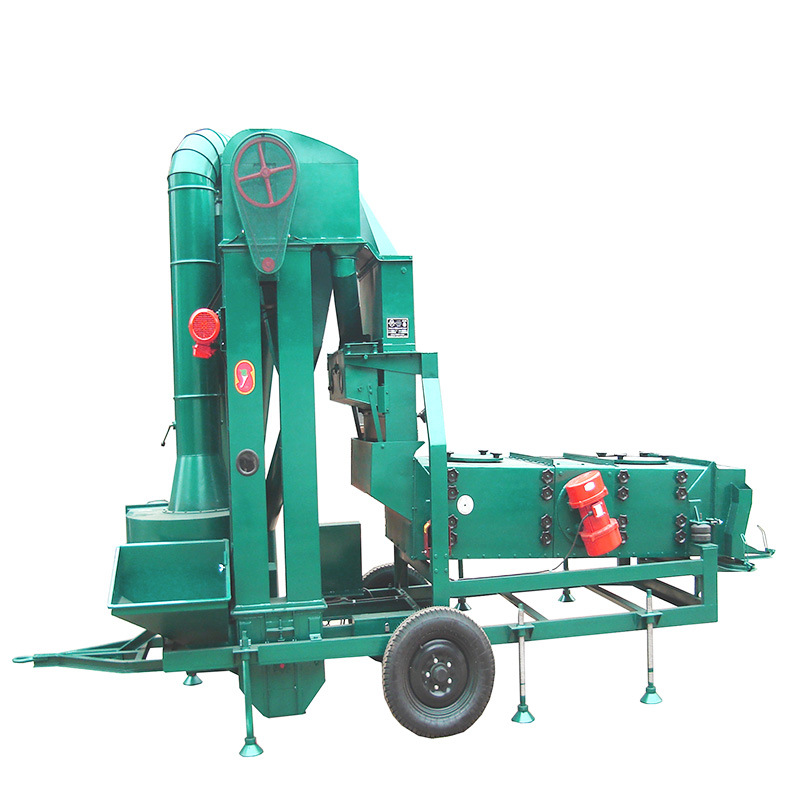

5t/H Soya Bean, Ground Nut Seed Air Screen Cleaner Machine

FAQ

Q: What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed.

Q: Can you make the machines as per our special requirement?
A: Yes, OEM/ODM service available.

Q: What about the lead time?
A: 10~45 workdays, depending on the type of machine and parts availability.

Q: What is your payment terms?
A: T/T, L/C, Western Union, Cash accepted. Usually 30% deposit for purchasing order, 70% balance paid before shipment.

Q: How can you guarantee the quality?
A: qualified quality control department make the Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure.

Q: How do we visit your company?
A:Green Torch is located in Shijiazhuang City, Hebei Province, China.
1.You can fly from shenzhen/shanghai/hongkong to shijiazhuang air port directly
2.fly to beijing air port first then take high speed train to shijiazhuang city
3. We can go to Beijing airport to pick you up by High seed train to our city, and help you book the hotel in our city, if need will make the travel plan depend on your needing.
