Soybean mung beans grain clean cleaning machine on sale this line is a complete line for beans cleaning, cleaning rate reach to 99.99%

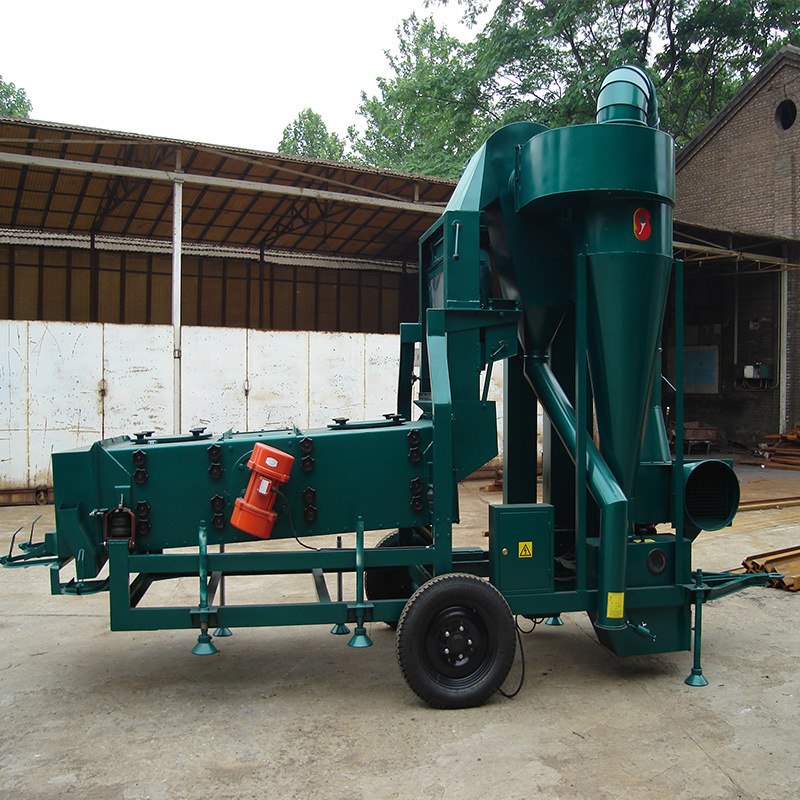

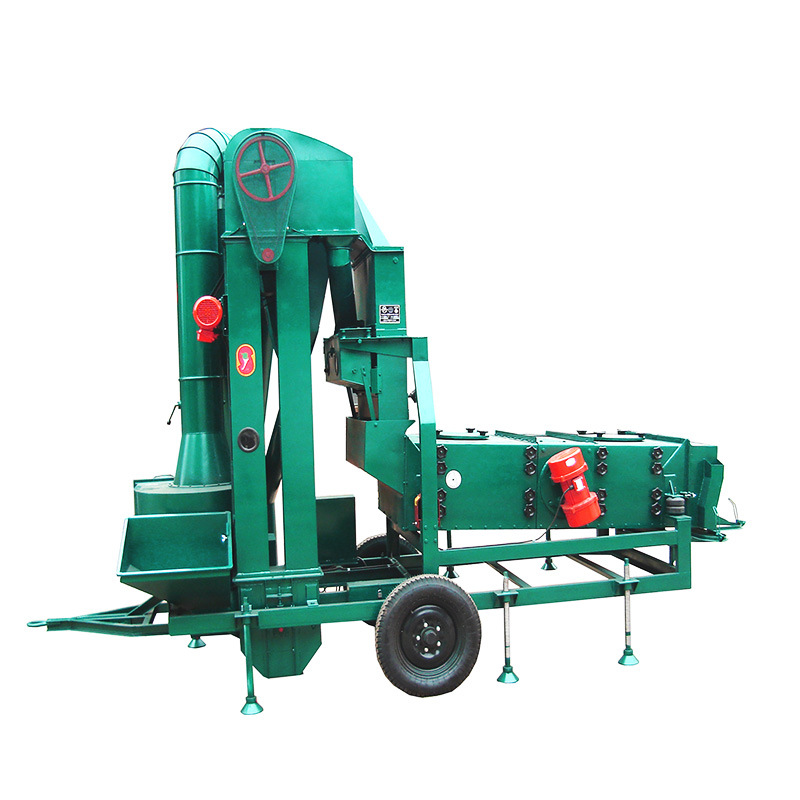

technical flow chat: air screen cleaning machine -- gravity destoner -- gravity separator Introduction of the bean cleaning line: 1. air screen cleaneing machine:
1. cleaning grain seed, remove dust, light impurities, light and heavy impurities efficiently
2. Three Main parts: elevating-air dust cleaning-screen sifting
3.Widely use, though changing different mesh size screens to process different kinds grain seeds and granular material.
4.double cylinder ultra-low speed elevator, crushing rate is less than 0.1%
5.Easy to operate, easy to replace screen, flexible to move, high reliability.
6.Combine with gravity separator, destoner, seeds grading, seed coating machines to a complete production line.

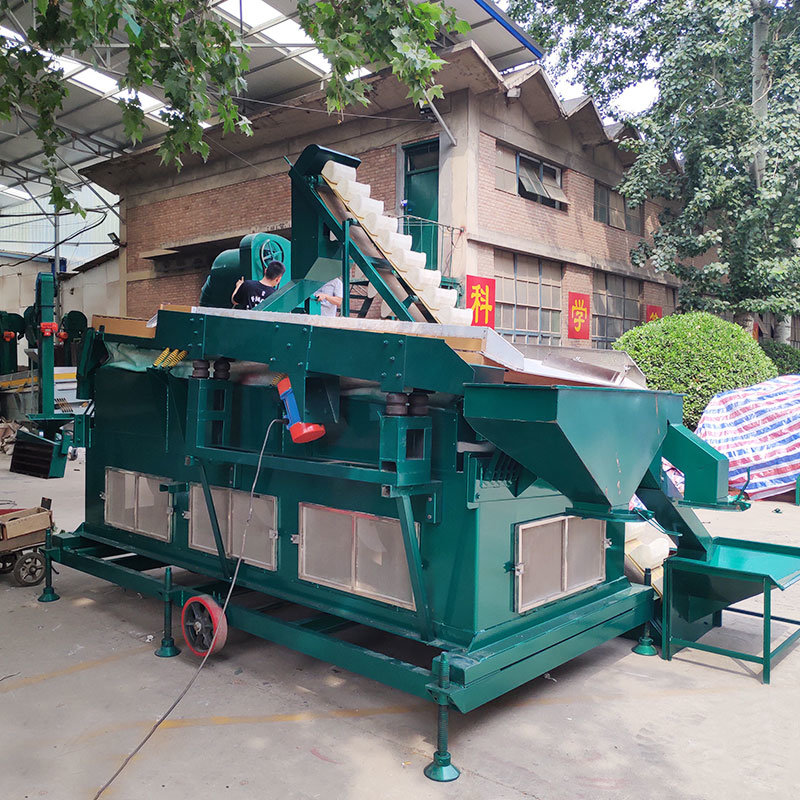

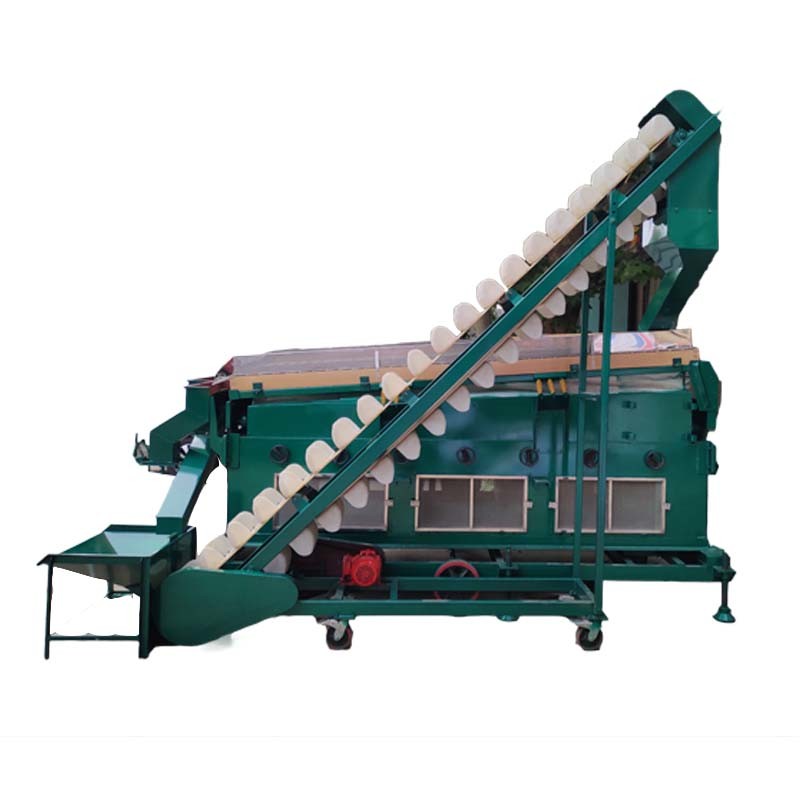

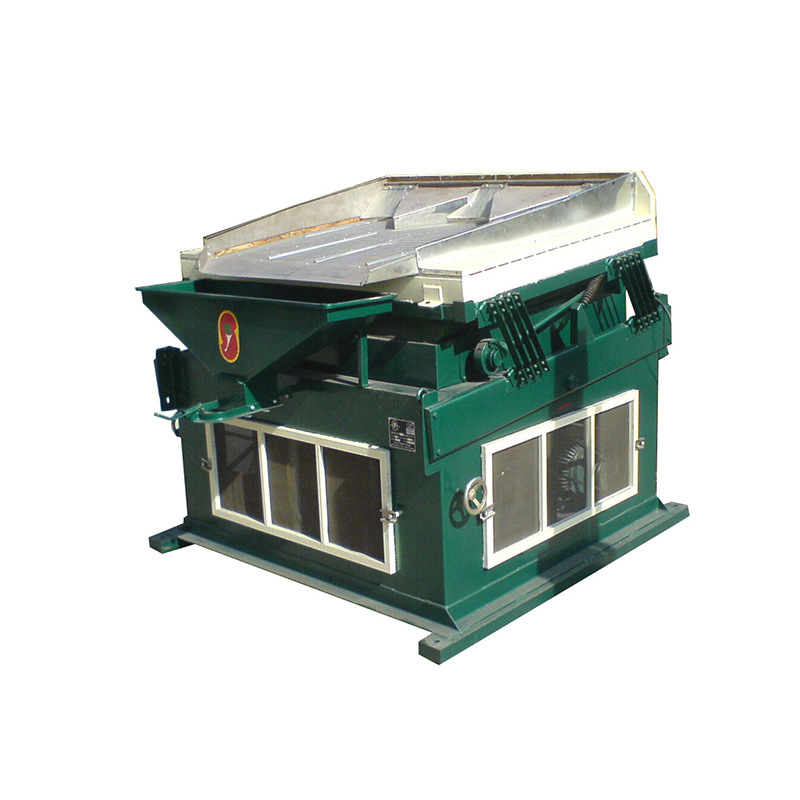

7. capacity from 3T/H to 10T/H. 2. gravity destoner: The gravity destoner is Green Torch designed for same size stone removing in the grain, crops seeds. The gravity destoner use the principle of specific gravity segregation to distribute the heavier stones at the bottom of the table and the lighter seeds particles at the top. After stratification, the stones climb up though screen and fall down into the discharge box. At the same time, the lighter grain, cop material slides downward, drawing to collector, and realizing the separation of the finished seeds from the stone. 3. Gravity separator:
The gravity separator is a key machine in grain seeds processing. gravity separator remove the same size impurities and Non-germinating seeds, like moldy kernel, immature seed, insect damaged or broken seed to ensure maximum quality of the seeds. The gravity separator is a very key machine to ensure the high Germination rate in the seed processing . This machine suitable for all kinds seeds processing by changing the different particle size screen sieves.
Green Torch supply you customized seed cleaning and processing line depend on your needing.
for more about our air screen cleaning machines, please contact with us freely, we will feedback to you within 12hours
