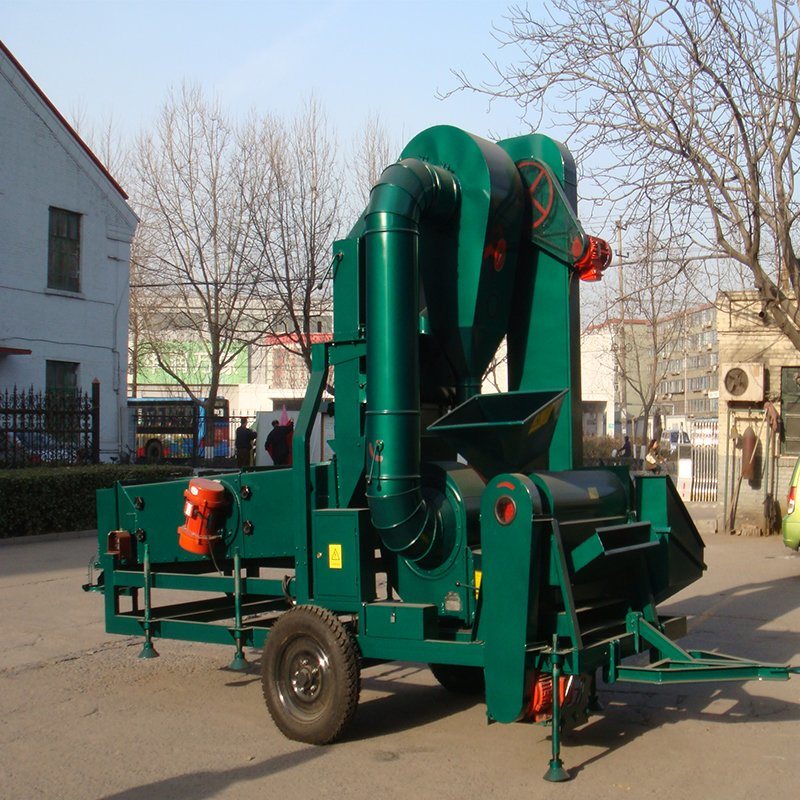

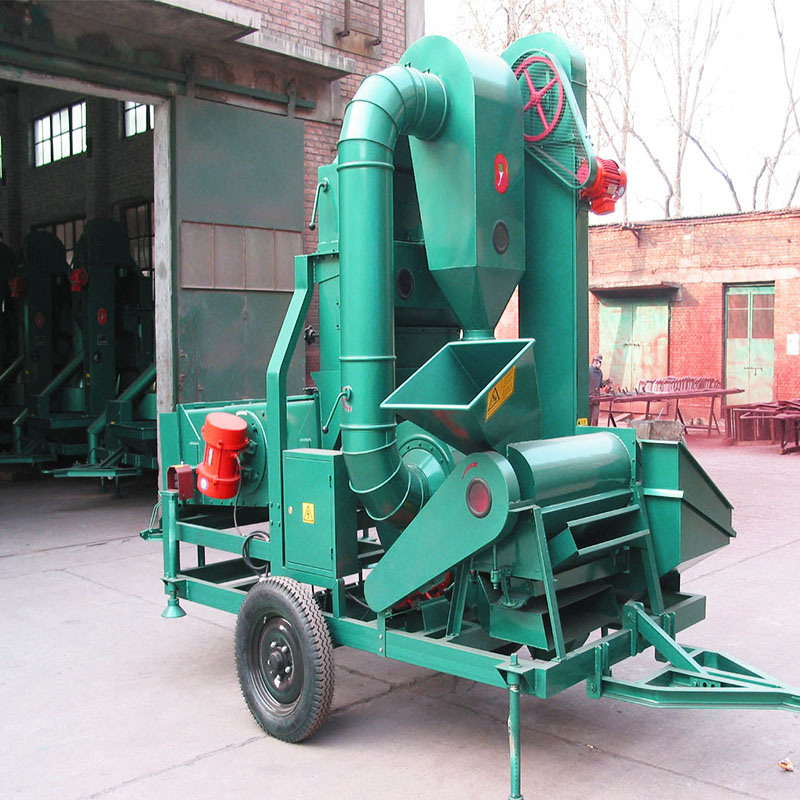

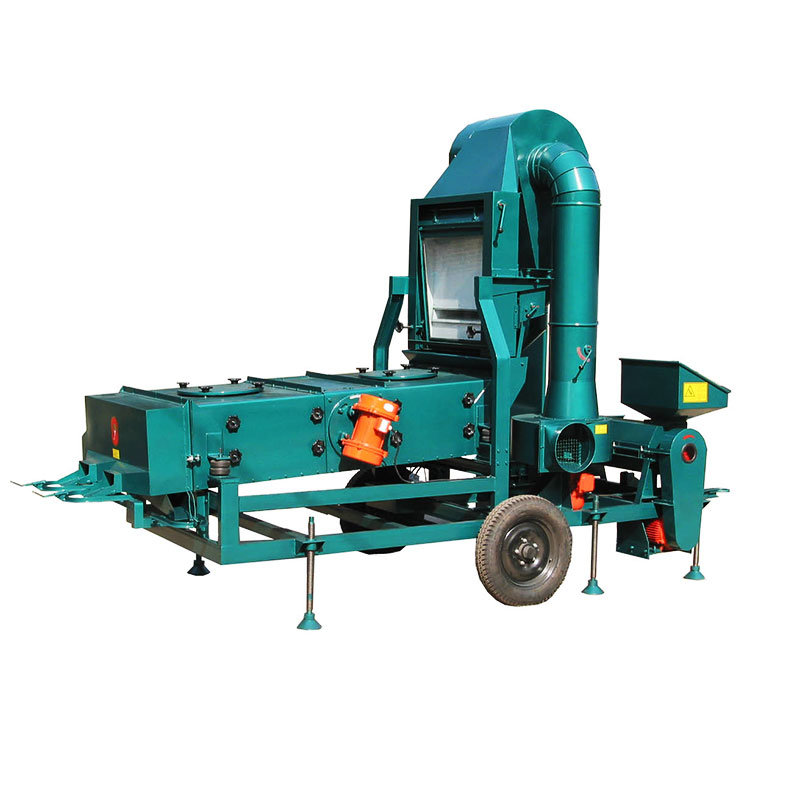

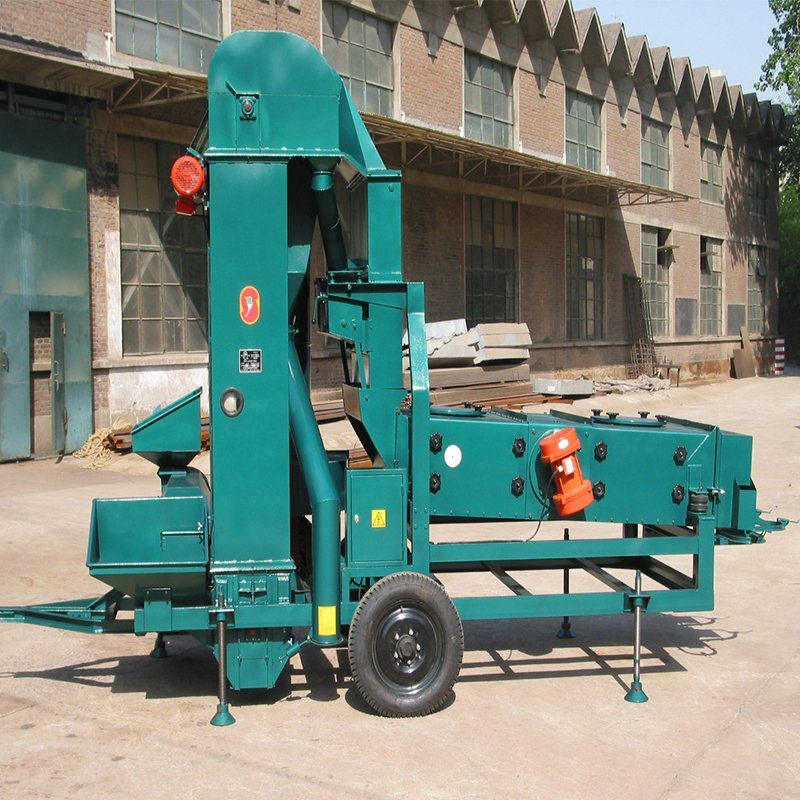

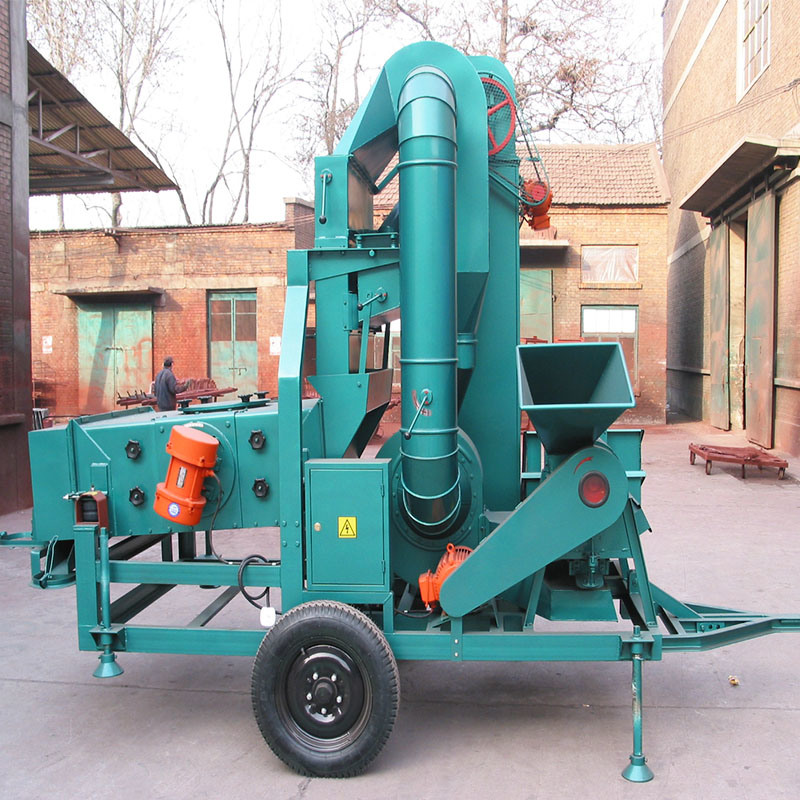

maize Thresher and Cleaning Machine
1. Introduction of the combined maize thresher and seed air screen cleaner Green Torch 5XT(F)C series combined maize thresher and air screen cleaner is a compound seed processing equipment designed by combining threshing machinery and seed cleaning machinery. this machine have three miain system:
1). the maize thresher will process a whole maize to maize seeds, select out the maize cob. and the maize seeds will go to the air screen cleaning machine
2).in the air dust cleaning system, it makes full use of the principle of wind sorting and screen sifting, can effectively separate straws awns, dust and other kinds of light impurities, with two times air dust cleaning and cyclone dust colloction system, sanitation with more environmental protection. 3). In the screen cleaning and grading system, it will sift our the big size and small size impurities according to the seed geometry size (length, width, thickness). in the same time, it can grade the material in 3-4 levels depend on clieng need. The elevator Adopt double cylinder ultra-low speed elevator, makes the crushing rate is less than 0.1%. vibration motor not only makes the machine compact structure, reduces the failure rate no special requirements for the use of the origin, can mobile operation. 2. Specifications of 5XT(F)C series combined maize thresher and seed air screen cleaner :
3. Advantage of air 5XT(F)C series combined maize thresher and seed air screen cleaner :
|Item ||5XTC2.0 ||5XTC-3.0 ||5XTFC3.0 ||5XTC-5.0 ||5XTFC5.0 |
|Capacity(T/H) ||2 ||3 ||3 ||5 ||5 |
|Power(KW) ||4.95 ||8.25 ||8.25 ||12.49 ||12.49 |
|Screen layers ||2 ||2 ||3 ||2 ||3 |
|Crashed rate(%) ||≤2.1 ||≤2.1 ||≤2.1 ||≤2.1 ||≤2.1 |
|Cleaness improve(%) ||2-5 ||2-5 ||2-5 ||2-5 ||2-5 |
|Selected rate(%) ||≥98 ||≥98 ||≥98 ||≥98 ||≥98 |
|Speed (KM/H) ||10 ||10 ||10 ||10 ||10 |
|Weight (T) ||1.0 ||1.36 ||1.46 ||1.6 ||1.7 |
|Size (MM) ||4050*1770*2688 ||4700*2200*2900 ||4700*2200*2900 ||5376*2060*3070 ||5376*2060*3070 | 4. applications:
- Finish the Maize from peed maize to cleaned well in one machine, high-efficiency
- widely use, air screen cleaning system suitable almost all kinds seed, grain and granular material processing industrial though changing the screens.
- Easy to operate, easy to replace screen, flexible to move, can mobile processing maize.
- It can combine with gravity cleaner, destoner, coating machines and packing to a complete processing machine line.
this machine mainly for maize processing from a whole maize to fine cleaned well maize seeds. this series cleaning machine is suitable for all kinds grain seeds and crop seeds cleaning processing though changing of the screens.
depend on the geometry size of different kinds of grains, we can equip different mesh size screens, thogh changing the screens, it can suitable for different grains, like maize, wheat, sesame, paddy, millet, cotton seeds, soya bean, sorghum, oat, ground nut, pumpkin seed, melon seed, sunflower seed, buckwheat, green bean, red bean, black bean, pea, chickpea, Alfalfa seeds, cassia seed, grass seeds and so on.
5. Why choose Green Torch as your partner?
1. Since 1980, 40 years experience Shijiazhuang Green Torch Seed Machinery Co., is one of the earliest professional enterprise engaged in the research, development and production operation of grain seeds cleaning and processing machinery.
2. China state-owned Enterprises Invested and established by Ministry of Agriculture, perfect reputation in all clients , your trustable supplier in China. 3. Customized Service Qualified technicians team and workers, supply special design and perfect work depend on client needing
professional quality control department double inspect the machine before loading, make suare the machien pefect condition for you. , 2 years guarantee time, life time service for all our machines 6. About loading: For LCL, we will pack in durable wooden box package. Fix insed well to make sure the goods can arrive to your factory well. For FCL, we will make the 3D drawing for loading the goods in the container to make sure every part can be packed and loaded well.
4. Life time after service
7. FAQ: Q: What do you need to know for fast communication and quotation? A: It would be highly appreciated if you can provide details of your material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed. Q: Can you make the machines as per our special requirement? A: Yes, OEM/ODM service available. Q: What about the lead time? A: 10~45 workdays, depending on the type of machine and parts availability. Q: What is your payment terms? A: T/T, L/C, Western Union, Cash accepted. Usually 30% deposit for purchasing order, 70% balance paid before shipment. Q: How can you guarantee the quality? A: qualified quality control department make the Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure. Q: How do we visit your company? A:Green Torch is located in Shijiazhuang City, Hebei Province, China. 1.You can fly from shenzhen/shanghai/hongkong to shijiazhuang air port directly 2.fly to beijing air port first then take high speed train to shijiazhuang city 3. We can go to Beijing airport to pick you up by High seed train to our city, and help you book the hotel in our city, if need will make the travel plan depend on your needing. 8. Welcome contact with us for more:
for more about our air screen cleaning machines, please contact with us freely, we will feedback to you within 12hours.
