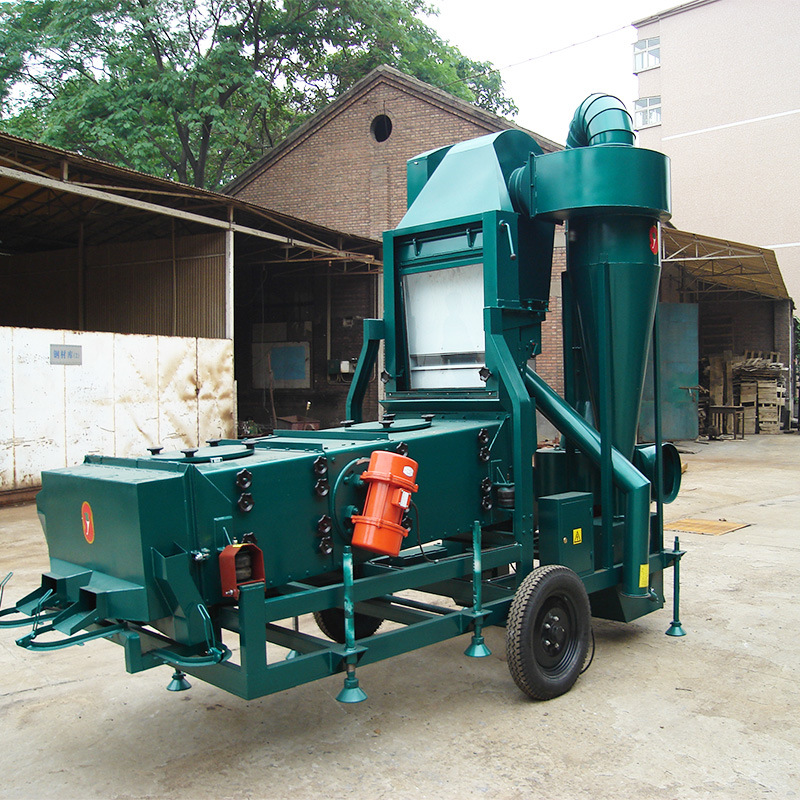

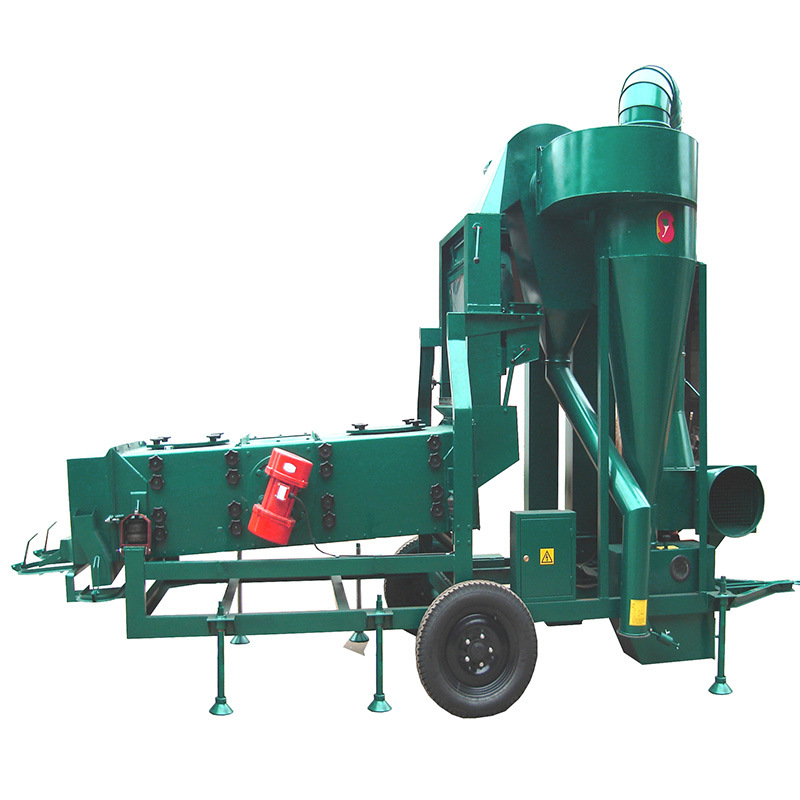

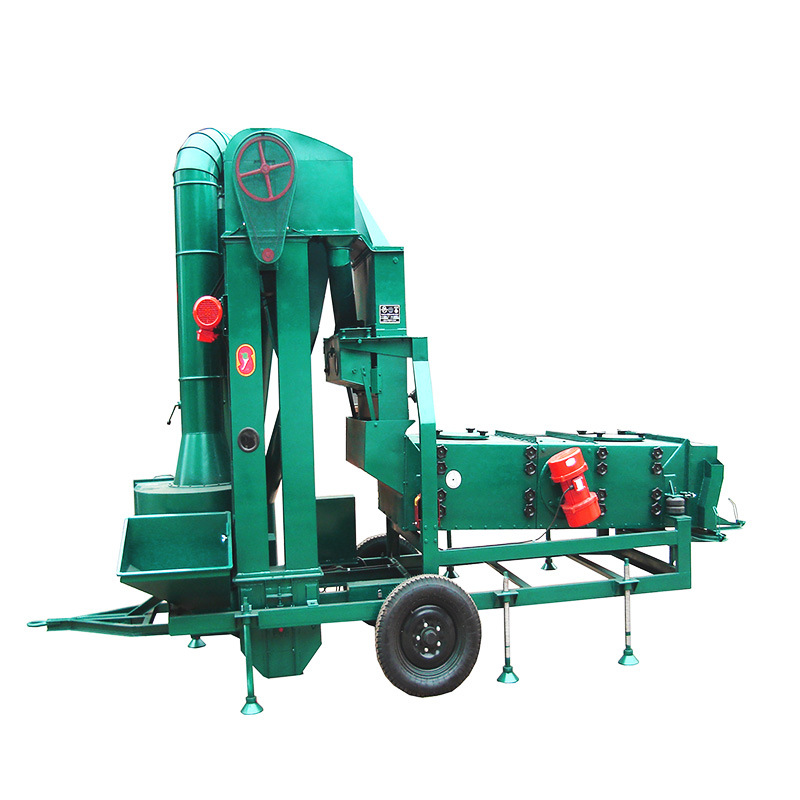

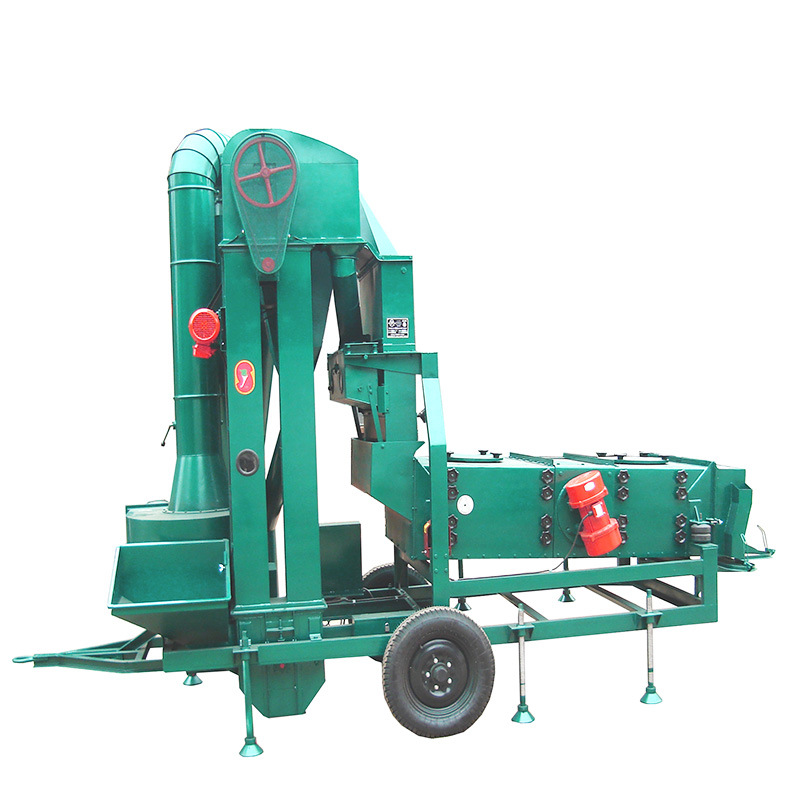

5XHC serise air screen cleaning machine
1. Introduction of air screen cleaner: 5XHC series air screen cleaning machine is for primary cleaning of all kinds of grain seeds an cops seed. it have the air dust cleaning system and screen cleaning system.
in the air dust cleaning system, it makes full use of the principle of wind sorting and screen sifting, can effectively separate straws awns, dust and other kinds of light impurities, with two times air dust cleaning and cyclone dust colloction system, sanitation with more environmental protection. In the screen cleaning system, it will sift our the big size and small size impurities according to the seed geometry size (length, width, thickness). The elevator Adopt double cylinder ultra-low speed elevator, makes the crushing rate is less than 0.1%. vibration motor not only makes the machine compact structure, reduces the failure rate no special requirements for the use of the origin, can mobile operation. 2. Specifications of 5XHC serise air screen cleaning machine :
|Item ||5XHC3.0 ||5XHC-5.0 ||5XHC-7.0 ||5XHC-10 |
|Capacity ||3000KG/H ||5000KG/H ||7000KG/H ||10000KG/H |
|Powder ||6.0KW ||6.24KW ||8.6KW ||9.75 |
|Cleanness improve ||2%-5% ||2%-5% ||2%-5% ||2%-5% |
|Selected rate ||≥98% ||≥98% ||≥98% ||≥98% |
|Size ||3400*1900*3220(mm) ||5073*2008*3349(mm) ||4473*2208*3349(mm) ||4930*2450*3192(mm) |
|weight ||1300 ||1500 ||1750 ||2100 |
Asamble Drawing for air screen cleaning machine 3. Green Torch Seed Machine Advantage: Green Torch Seed Machinery support whole week 7Day 24Hours continue full loading work. Machine lifetime 10-15 years .
- Strong durable Channel steel to make the platform and support and Traction frame, makes the whole machine running much stable and durable in high-intensity continuous full-load work. Channel steel traction frame, does not deform during traction will protect the whole machine well during moving, and seed can reach to 10KM/H with tractors. Strengthen the spiral support to make the equipment more stable during vibration work
- All steel sheets from Chinese famous brand Shougang Group, Bao steel Group, Strictly comply with national and industry standards. the steel sheet is flatter and the overall performance is always stable, not deformed in High-intensity and long-term vibrating work, machine lifetime much longer.
- Bucket elevators adopt the ultra-low speed non broken bucket elevator, protect all grains completeness during transportation, Green Torch Special design for grain seed cleaning and processing.
- All the blowing fans supply air power during seed cleaning, The fan impellers angle is accurate and reasonable, have passed the dynamic balance and static balance test, make sure the Stable air volume and pressure, make the whole machine running stable and clean the dust, light impurities well with low noise.
- No dead corner, easy cleaning up, prevention of mechanical mixing of seeds: Since the same crops have different varieties, the cleaning equipment is prone to mechanical mixing due to unclean cleaning, which affects the quality of seeds. All equipment of our company has done corner treatment, there is no dead corner, easy to clean up, to ensure the purity of seeds, suitable various kinds of grains seed cleaning and processing.
this series screen cleaning machine is suitable for all kinds grain seeds and crop seeds cleaning processing.
depend on the geometry size of different kinds of grains, we can equip different mesh size screens, thogh changing the screens, it can suitable for different grains, like maize, wheat, sesame, paddy, millet, cotton seeds, soya bean, sorghum, oat, ground nut, pumpkin seed, melon seed, sunflower seed, buckwheat, green bean, red bean, black bean, pea, chickpea, Alfalfa seeds, cassia seed, grass seeds and so on.
5XHC series air screen cleaning machine suitable for all kinds of grains. 5. Why choose Green Torch as your partner?
1. Since 1980, 40 years experience Shijiazhuang Green Torch Seed Machinery Co., is one of the earliest professional enterprise engaged in the research, development and production operation of grain seeds cleaning and processing machinery.
2. China state-owned Enterprises Invested and established by Ministry of Agriculture, perfect reputation in all clients , your trustable supplier in China.
3. Customized Service Qualified technicians team and workers, supply special design and perfect work depend on client needing
Professional quality control team, 2 years guarantee time, life time service for all our machines 6. About loading: For LCL, we will pack in durable wooden box package. Fix insed well to make sure the goods can arrive to your factory well. For FCL, we will make the3D drawing for loading the goods in the container to make sure every part can be packed and loaded well.
4. Life time after service
7. FAQ: Q: What do you need to know for fast communication and quotation? A: It would be highly appreciated if you can provide details of your material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed. Q: Can you make the machines as per our special requirement? A: Yes, OEM/ODM service available. Q: What about the lead time? A: 10~45 workdays, depending on the type of machine and parts availability. Q: What is your payment terms? A: T/T, L/C, Western Union, Cash accepted. Usually 30% deposit for purchasing order, 70% balance paid before shipment. Q: How can you guarantee the quality? A: qualified quality control department make the Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure. Q: How do we visit your company? A:Green Torch is located in Shijiazhuang City, Hebei Province, China. 1.You can fly from shenzhen/shanghai/hongkong to shijiazhuang air port directly 2.fly to beijing air port first then take high speed train to shijiazhuang city 3. We can go to Beijing airport to pick you up by High seed train to our city, and help you book the hotel in our city, if need will make the travel plan depend on your needing. 8. Welcome contact with us for more:
for more about our air screen cleaning machines, please contact with us freely, we will feedback to you within 12hours.
