Wheat, Maize,Seed Gravity Separator
Grain Seeds
380V
Vertical
| Quantity: | |
|---|---|
1. Introduction of blowing type seed gravity separating cleaner

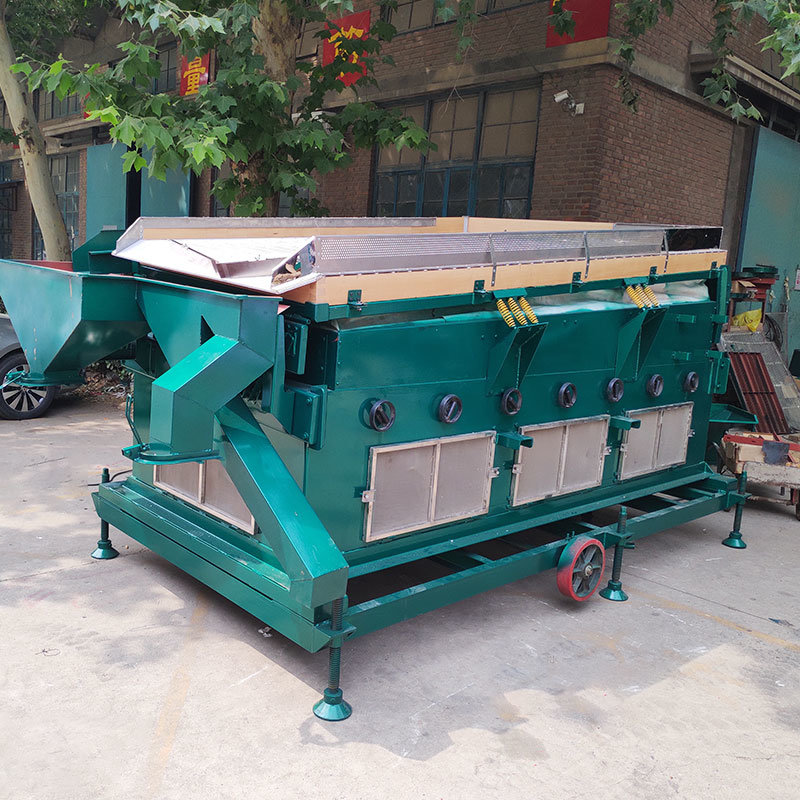

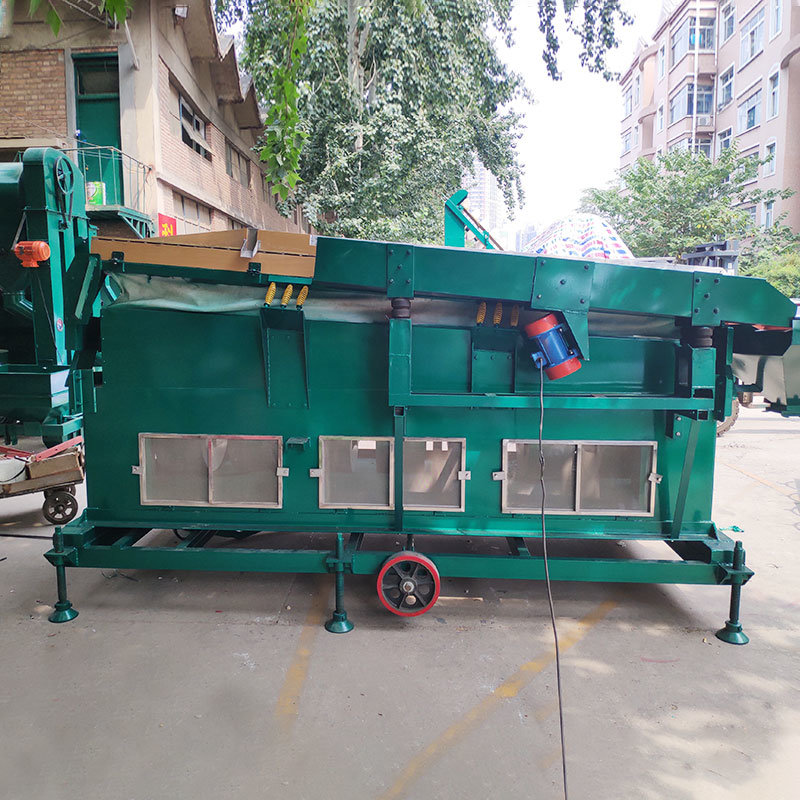

5XZC blowing type gravity separator separator out the bad quality seed or grain in same size but difference in gravity weight with good quality grains ,The blowing type gravity separator, have enlarge cleaning screen with strong evening blowing fans power, widely used in the seed processing and grain crop processing industries.It can remove out moldy seed, immature shriveled seed, insect damaged or broken seed and also can remove the size smaller than 2mm heavier impurities, like Sand, stones, clods, to ensure maximum quality of the grains.
According to the principle of the segregation of particles and density in the process of fluidization of granular materials, the machine adjusts the technical parameters such as wind pressure and amplitude to make the materials exchange the positions and produce stratification. The parts of heavier specific gravity settles downwards, and the parts of lower specific gravity drifts upwards. After entering the dropping area, the materials of different types are discharged from different parts according to the requirements, which has achieved the purpose of selection.
| Item | Model | 5XZC-8A |
| Capacity (KG/H) | 5000-8000 |
| Power(KW) | 13.32 |
| Selected rate | 98% |
| Crashing rate | ≤0.1% |
| Awn cleaning rate | ≥95% |
| Move speed(KM) | ≤10KM |
| Weight(KG) | 1800 |
| Dimensions(mm) | 3900*2300*2860 |
Advance gravity separator, blowing type supply much large wind power, easily for the grains separate the light gravity weight parts in the grains, like the moldy seeds, insect damaged seeds, broken seeds, and so on, to make sure the final grains much pure in quality.
1. Introduction of blowing type seed gravity separating cleaner
5XZC blowing type gravity separator separator out the bad quality seed or grain in same size but difference in gravity weight with good quality grains ,The blowing type gravity separator, have enlarge cleaning screen with strong evening blowing fans power, widely used in the seed processing and grain crop processing industries.It can remove out moldy seed, immature shriveled seed, insect damaged or broken seed and also can remove the size smaller than 2mm heavier impurities, like Sand, stones, clods, to ensure maximum quality of the grains.According to the principle of the segregation of particles and density in the process of fluidization of granular materials, the machine adjusts the technical parameters such as wind pressure and amplitude to make the materials exchange the positions and produce stratification. The parts of heavier specific gravity settles downwards, and the parts of lower specific gravity drifts upwards. After entering the dropping area, the materials of different types are discharged from different parts according to the requirements, which has achieved the purpose of selection.
| Item | Model | 5XZC-8A |
| Capacity (KG/H) | 5000-8000 |
| Power(KW) | 13.32 |
| Selected rate | 98% |
| Crashing rate | ≤0.1% |
| Awn cleaning rate | ≥95% |
| Move speed(KM) | ≤10KM |
| Weight(KG) | 1800 |
| Dimensions(mm) | 3900*2300*2860 |
Advance gravity separator, blowing type supply much large wind power, easily for the grains separate the light gravity weight parts in the grains, like the moldy seeds, insect damaged seeds, broken seeds, and so on, to make sure the final grains much pure in quality.
